Special Trailers Sale - Special Trailers
Sitema de dirección hidráulico DOLL de 2 circuitos que actua sobre todos los ejes.
- Reference
- DOLL VARIO S5H-T (D332)
- Brand
- DOLL
- Type of Vehicle

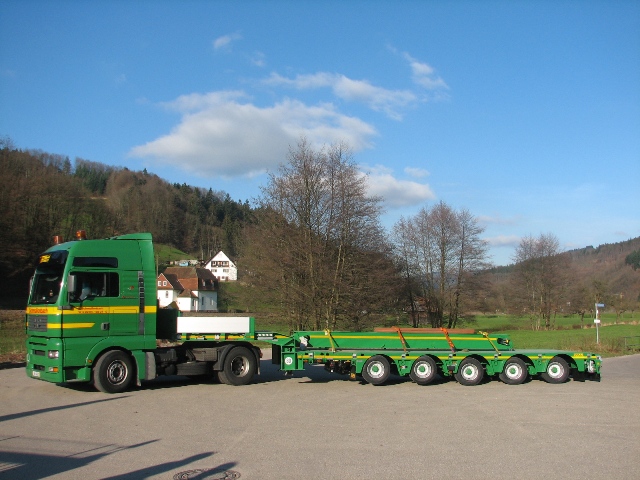

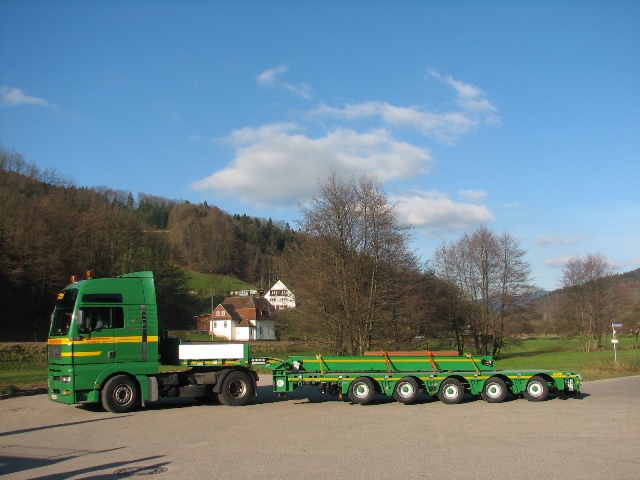

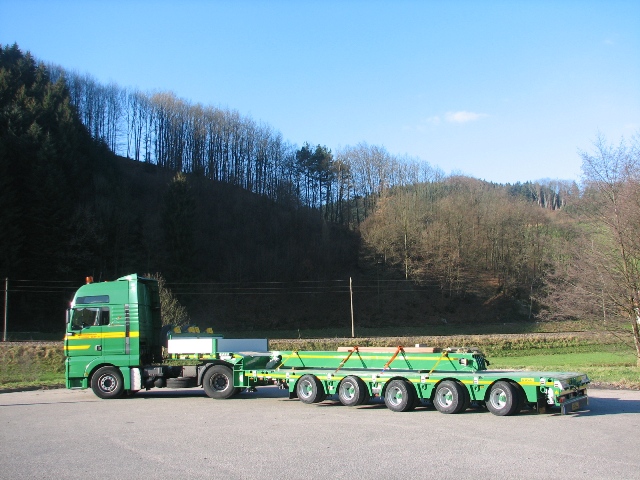

- SEMIRREMOLQUE GÓNDOLA DE 5 EJES, DOBLE EXTENSIÓN, DIRECCIÓN HIDRÁULICA.
- Utility
- TRANSPORTE MAQUINARIA, MATERIALES LARGOS, ESTRUCTURAS, VIGAS, PREFABRICADOS,ETC...
- Long
- 12.660 mm
- Extended Length
- 25.960 mm
- Long-necked swan
- 3.660 mm
- Front overhang
- 1.110 mm
- Rear overhang
- 1.240 mm
- Bed width
- 2.550 mm
- Wide-necked swan
- 2.480 mm
- Tilting back in the gooseneck
- 500 mm x 15º
- Extensions
- 1er T. 6.800 mm, 2º T. 6.500 mm
- Wheelbase
- 1º/2º 1.360 mm - 2º/3º 1.360 mm - 3º/4º 1.360 mm - 4º/5º 1.360 mm
- Number of axles and mark
- 5 ejes marca BPW, suspensión hidráulica, frenos tambor, ABS, AGS y ECO-hub system.
- Empty weight
- 16.900 kg aproximado
- Total loaded weight
- 88.900 kgs. a 40 km/hora
- Weight 5th Wheel
- 26.400 kgs. a 40 km/hora
- Axle weight
- 62.500 kgs. a 40 km/hora
- Cargo Capacity
- 72.000 kgs. a 40 km/hora
- Support legs
- 2 patas mecanicas de 24 Tm
- Type of suspension
- Suspensión hidráulica
- Tires
- 22 neumáticos 245/70 R 17,5 con llantas de acero
- Operation
- Hidráulica forzada desde 5ª rueda
- Additional operation
- Con radio control
- Braking system
- Frenos de tambor, ABS, AGS y ECO-hub system.
- Lights
- Instalación de 24 voltios de acuerdo con la normativa de trafico vigente 76/756/EWG
- Connections with the tractor
- No se incluyen los cables especiales de ABS y alumbrado ni los tubos de aire
- Paint
- Llantas plateadas, chasis y plataforma en 1 color RAL escogido por el cliente
- Wheels
- Acero
- Centralized lubrication
- Dos bombas BEKA-MAX
- Ramps
- Dobles o sencillas accionamiento hidráulico (opcionales)
- Comments
- Construcción en acero reforzado de alta elasticidad. Extensión adicional de 9.000 mm. (opcional)
